Ducati Scrambler 800 - Service manual > Canister filter

Refitting the Canister filter

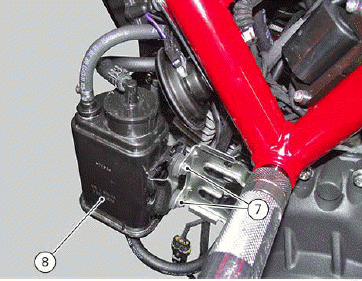

Position the canister filter (8) and fix it to the bracket through nuts (7).

Tighten nuts (7) to a torque of 8 Nm +- 10%.

Canister filter

Position hoses (4), (5) and (6) on the filter and fix it with clips (1), (2) and (3).

Canister filter

Removing the canister filter

Remove clips (1), (2) and (3) and release hoses (4), (5) and (6) respectively.

Canister filter

Unscrew the two nuts (7) and remove the canister filter (8).

Canister filter

Canister filter system

USA models are equipped with an additional system featuring a Canister filter that prevents fuel fumes from being discharged into the atmosphere.

The breather hose (4) is connected to the Canister filter (1); when the fuel has been filtered, it is returned through the hose (2) to the intake manifold (A).

Pipe (3) vents to the ground.

Canister filter
