REMOVING THE PASSENGER FOOTRESTS

The following procedure is described for a single footrest, but is valid for both passenger footrests.

• Remove the snap ring(1)

• Remove the pin (2)

• Remove the pin (2)

• Retrieve the two plates (4), the sphere (5) and the spring (6)

REMOVING THE PASSENGER FOOTREST SUPPORT

The following procedure is described for a single bracket, but is valid for both passenger footrest brackets.

• Unscrew and remove the two screws (1)

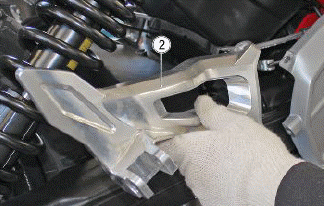

• Remove the passenger footrest bracket (2)

RIDER FOOTREST REMOVAL

The following procedure is described for a single footrest, but is valid for both rider footrests.

• Remove the snap ring(1)

• Remove the pin (2)

• Remove the rider footrest (3)

REMOVING THE GEAR SHIFT LEVER

• Remove the safety clip (1) from the gear shift lever

• Remove the gear shift lever from the spherical joint (2)

• Undo and remove the screw (3)

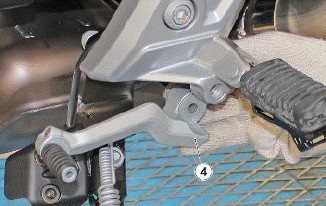

• Remove the gear lever (4)

• Retrieve the bushing (5) and the two O-rings (6)

REMOVING THE REAR BRAKE LEVER

• Holding the nut (2) so that it cannot rotate, remove the screw (1)

• Remove the rear brake lever (3)

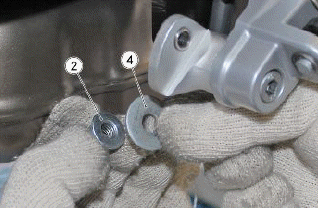

• Retrieve the nut (2) and the washer (4)

• Retrieve the bushing (5) and the two Orings (6)

RIGHT RIDER FOOTREST BRACKET REMOVAL

• Remove the rear brake master cylinder, brake master cylinder plunger and front brake lever
• Undo and remove the screw (1)

• Undo and remove the screw (2)

• Undo and remove the screw (3)
• Retrieve the bushing (4)

• Undo and remove the screw (5)

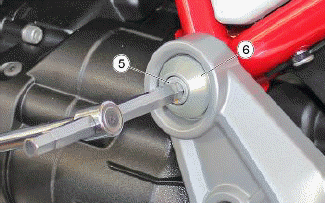

• Retrieve the bushing (6)

• Hold the nut (7) from the opposite side so that it cannot rotate and remove the screw (8)

• Rotate the plate 180º, undo and remove the screws (9) and remove the bracket (10)

• Undo and remove the screw (11) and remove the sensor (12) from the bracket

• Remove the right rider footrest bracket plate (13)
• Remove the passenger footrest bracket

LEFT RIDER FOOTREST BRACKET REMOVAL

• Remove the safety clip (1)

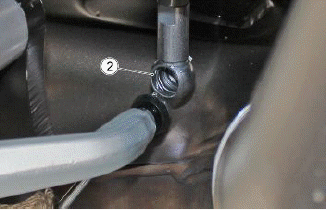

• Remove the gear shift lever from the spherical joint (2)

• Undo and remove the screw (3)

• Undo and remove the screw (4)

• Undo and remove the screw (5) and retrieve the bushing (6)

• Undo and remove the screw (7) and retrieve the bushing (8)

• Holding the screw (9) from the opposite side so that it cannot rotate, undo and remove the nut (10)

• Rotate the plate 180º and remove the two cable grommets (11)

• Remove the left rider footrest bracket plate (12)
