Moto Guzzi V85 TT - Owner's Manual > Fuses

CAUTION

DO NOT ATTEMPT TO REPAIR FAULTY FUSES.

NEVER USE A FUSE THAT IS DIFFERENT THAN WHAT IS SPECIFIED TO PREVENT DAMAGES TO THE ELECTRICAL SYSTEM OR SHORT CIRCUITS, AND THE RISK OF FIRE.

NOTE

A FUSE THAT BLOWS FREQUENTLY MAY INDICATE A SHORT CIRCUIT OR OVERLOAD. IF THIS OCCURS, CONTACT AN Authorised Moto Guzzi Dealer.

To check:

• Set the ignition switch to 'OFF' to avoid an accidental short circuit.
• Remove the saddle.
• Remove the fuse box cover.

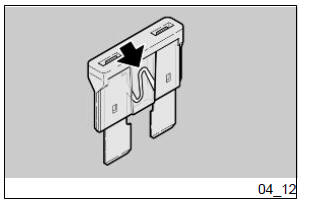

• Take out one fuse at a time and check if the filament is broken.
• Before replacing the fuse, find and solve, if possible, the reason that caused the problem.
• If the fuse is damaged, replace it with one of the same current rating.

NOTE

IF THE SPARE FUSE IS USED, REPLACE WITH ONE OF THE SAME TYPE IN THE CORRESPONDING FITTING.

MAIN FUSES

These are located underneath the saddle on the LH side

SECONDARY FUSES

These are located underneath the saddle on the RH side

Front light group

NOTE

WHEN THE REAR WHEEL EXCEEDS THE SPEED OF 1 km/h (0.62 mph) (EVEN WITH THE ENGINE OFF, AND THE KEY SET TO ON), THE HEADLIGHTS WILL TURN ON AND WILL REMAIN ON FOR 30 SECONDS (FROM THE TIME IN WHICH THE REAR WHEEL STOPS MOVING).

CAUTION

TO REMOVE, CHECK AND REPLACE THE LIGHTS IN THE FRONT LIGHT ASSEMBLY, PLEASE CONTACT AN Authorised Moto Guzzi Dealership

Headlight adjustment

NOTE

IN COMPLIANCE WITH LOCAL LEGAL REQUIREMENTS, SPECIFIC PROCEDURES MUST BE FOLLOWED WHEN CHECKING LIGHT BEAM ADJUSTMENT.

For a quick check of the correct direction of the front light beam:

• Place the vehicle 10 m (32.81 ft) away from a vertical wall and make sure the ground is level.
• Turn on the low beam light, sit on the vehicle and check that the light beam projected to the wall is a little below the headlight horizontal straight line (about 9/10 of the total height).

To carry out vertical adjustment of the light beam:

• Stand the motorcycle in a vertical position.
• Slightly loosen the headlight fixing screws (1) on both sides.

• Slightly loosen the headlight fixing screw (2), and move the light beam manually to the desired position.
• Once adjusted, tighten all the screws.

After adjusting:

NOTE

CHECK THAT THE LIGHT BEAM VERTICAL DIRECTION IS CORRECT.

Front direction indicators

NOTE

TO REMOVE, CHECK AND REPLACE THE FRONT INDICATORS, PLEASE CONTACT AN Authorised Moto Guzzi Dealership

Rear optical unit

CAUTION

TO REMOVE, CHECK AND REPLACE THE TAILLIGHT UNIT, PLEASE CONTACT AN Authorised Moto Guzzi Dealership.

Rear turn indicators

NOTE

TO REMOVE, CHECK AND REPLACE THE REAR INDICATORS, PLEASE CONTACT AN Authorised Moto Guzzi Dealership

Rear-view mirrors

DO NOT RIDE WITH REAR-VIEW MIRRORS INCORRECTLY SET.

ALWAYS CHECK THAT THE MIRRORS ARE ADJUSTED CORRECTLY BEFORE SETTING OFF.

Rear-view mirrors removal:

• Rest the vehicle on its stand.
• Lift the rubber protection.
• Loosen the locking nut.
• Slide up and remove the complete rear-view mirror unit.

Repeat the procedure to remove the other rear-view mirror, if necessary.

UPON REFITTING AND BEFORE TIGHTENING THE LOCKING NUT, MAKE SURE THAT THE REAR VIEW MIRROR SUPPORT STEM IS ALIGNED WITH THE HANDLEBAR.

Rear-view mirrors adjustment:

• Get onto the bike in the riding position.
• Turn the mirror, correctly adjusting the inclination.

Repeat the procedure to adjust the other mirror.

• Make sure there is no dirt or mud.
