Ducati Scrambler 800 - Service manual > Refitting the air filters

If it is necessary to refit the filter cover, refer to paragraph "Refitting the airbox".

Fit the rubber support (7) on filter (6).

Fit air filter unit fully home on the relevant cover (3) by inserting the support edge (7) in the cover internal wall.

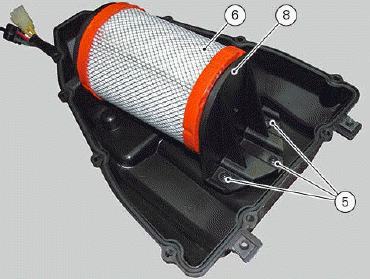

Fit the filter base (8) fully against the air filter (6).

Fix it by tightening screws (5) to a torque of 5 Nm +- 10%.

Position the air filter cover (3) and tighten screws (4) to a torque of 1 Nm +- 10%.

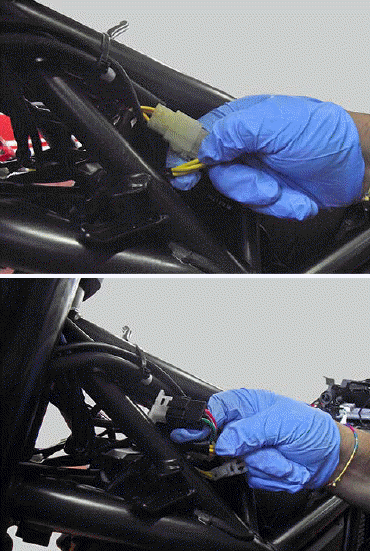

Connect the regulator connectors.

Removing the air filters

Disconnect the regulator connectors.

Undo screws (4) and remove the airbox cover (3).

Remove the airbox cover.

Loosen the three screws (5) of the support to remove the air filter.

Remove the airbox (6).
