Moto Guzzi V85 TT - Service manual > Removing

• Removing the clamp (1)

• Unscrew the pin (2) and remove it.

• Unscrew the nut (3) and remove it

• Unscrew the pin (4) and remove it.

• Remove the swingarm (5)

Removing

• Remove the footrest plates
• Remove the rear wheel
• Remove the swingarm
• Strike a few times with a mallet to remove the cardan shaft (1)

Removing

• Unscrew and remove the screws (1)

• Unscrew and remove the screws (2)

• Remove the bevel gear (3)

Removal

• Undo the gearbox cover fixing screws

• Using the suitable special tool, heat the perimeter of the cover

Specific tooling

020151Y Air heater

• If available, use the threaded stud bolts as a guide to remove the cover. Turn the complete box and tapping it on a flat surface, remove the cover.

• Slide off the complete cover from the crown.

• Remove the crown axle thickness.

• Remove the inside spacer.

• Collect the washer.

• Remove the needle bearing.

• Using a suitable tool, disengage the radial snap ring.

• Remove the radial snap ring.

• Using the special tool, heat the seat of the outer track of the needle bearing.

Specific tooling

020151Y Air heater

• Insert the special tool under the washer and screw the cursor.

Specific tooling

001467Y036 Bearing internal cup extractor

• Insert a suitable bushing on the proper tool and screw the nut while holding the extractor.

• Remove the outer track of the needle bearing.

• Remove the washer.

• Remove the sealing ring. When reassembling use a new ring.

• Using a suitable tool, remove the radial snap ring.

• Using special tool, unscrew the ring nut. At the end of the thread, screw until it stops in such a way as to create the space between the same ring nut and the shoulder washer.

Specific tooling

020999Y Crown counter- lock ring wrench

• Insert the special tool under the shoulder washer and screw the cursor.

Specific tooling

19.90.70.00 Extractor for internal ring on drilled bolt

• Remove the inner track of the needle bearing.

• Remove the shoulder washer.

• Remove the ring nut.

• Remove the crown gear.

• Remove the cover from the gearbox of the splash guard hub.

• Remove the O-ring. When reassembling use a new O-ring.

• Rotate the cover and remove the seal ring. When reassembling use a new seal ring.

• Using special tool, unscrew the pinion bearings case.

Specific tooling

020998Y Pinion case wrench

• Remove the complete pinion from its seat.

• Using the special tool, lock in the vice, unscrew fastening nut and lock nut of the pinion case bearing.

Specific tooling

021000Y Bevel gear pair support

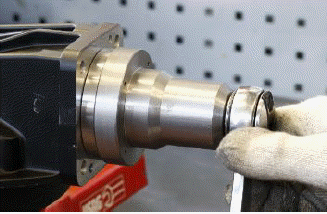

• Remove the spacer closing bearings.

• Remove the sealing ring.

• Remove the O-ring.
