REMOVAL

The following procedure is described for a single side bumper, but is valid for both side bumpers.

• Undo and remove the screw (1)

• Remove the side bumpers (2)

Rear rack

LUGGAGE RACK COVER REMOVAL

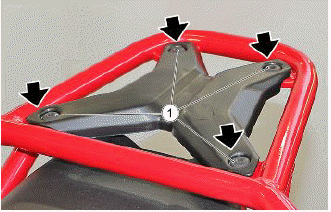

• Holding the nuts still located on the lower part of the area indicated in the figure, loosen and remove the screws (1)

• Remove the luggage rack cover (2)

LUGGAGE RACK REMOVAL

• Unscrew and remove the screws (1)

• Unscrew and remove the screws (2)

• Remove the luggage rack (3)

Hand guards

REMOVAL

The following procedure is described for a single handguard, but is valid for both handguards.

• Remove the rear view mirrors

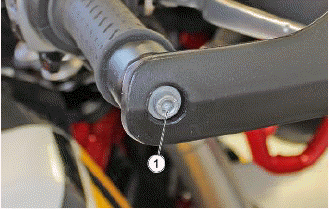

• Undo and remove the screw (1)

• Remove the handguards (2)

• Retrieve the counterweight (3)
