Ducati Scrambler 800 - Service manual > Wiring diagram

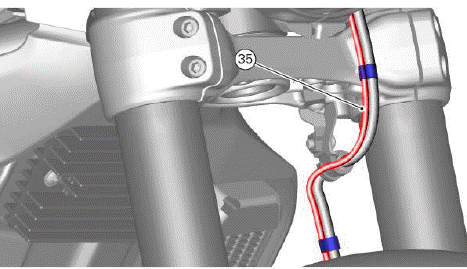

Table Z

For the complete index of the wirings, divided by tables, refer to chapter "Routing of wiring on frame".

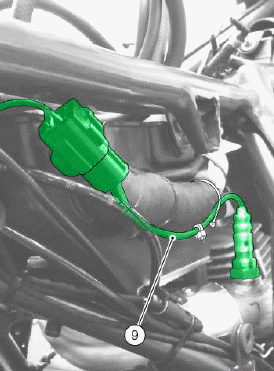

TABLE AA

For the complete index of the wirings, divided by tables, refer to chapter "Routing of wiring on frame".

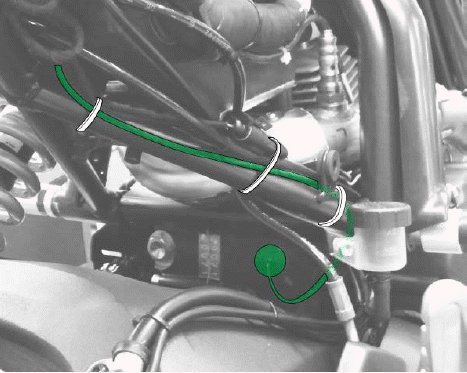

TABLE BB

For the complete index of the wirings, divided by tables, refer to chapter "Routing of wiring on frame".

TABLE CC

For the complete index of the wirings, divided by tables, refer to chapter "Routing of wiring on frame".

TABLE DD

For the complete index of the wirings, divided by tables, refer to chapter "Routing of wiring on frame".

Table Y

For the complete index of the wirings, divided by tables, refer to chapter "Routing of wiring on frame".

Table X

For the complete index of the wirings, divided by tables, refer to chapter "Routing of wiring on frame".

Table W

For the complete index of the wirings, divided by tables, refer to chapter "Routing of wiring on frame".

Table V

For the complete index of the wirings, divided by tables, refer to chapter "Routing of wiring on frame".

Table U

For the complete index of the wirings, divided by tables, refer to chapter "Routing of wiring on frame".

Table T

For the complete index of the wirings, divided by tables, refer to chapter "Routing of wiring on frame".

Table S

For the complete index of the wirings, divided by tables, refer to chapter "Routing of wiring on frame".

Table R

For the complete index of the wirings, divided by tables, refer to chapter "Routing of wiring on frame".

Table Q

For the complete index of the wirings, divided by tables, refer to chapter "Routing of wiring on frame".

Table P

For the complete index of the wirings, divided by tables, refer to chapter "Routing of wiring on frame".

Table O

For the complete index of the wirings, divided by tables, refer to chapter "Routing of wiring on frame".

Table N

For the complete index of the wirings, divided by tables, refer to chapter "Routing of wiring on frame".

Table M

For the complete index of the wirings, divided by tables, refer to chapter "Routing of wiring on frame".

Table L

For the complete index of the wirings, divided by tables, refer to chapter "Routing of wiring on frame".

Table K

For the complete index of the wirings, divided by tables, refer to chapter "Routing of wiring on frame".

Table J

For the complete index of the wirings, divided by tables, refer to chapter "Routing of wiring on frame".

Table H

For the complete index of the wirings, divided by tables, refer to chapter "Routing of wiring on frame".

Table G

For the complete index of the wirings, divided by tables, refer to chapter "Routing of wiring on frame".

Table F

For the complete index of the wirings, divided by tables, refer to chapter "Routing of wiring on frame".

Table E

For the complete index of the wirings, divided by tables, refer to chapter "Routing of wiring on frame".

Table D

For the complete index of the wirings, divided by tables, refer to chapter "Routing of wiring on frame".

Table C

For the complete index of the wirings, divided by tables, refer to chapter "Routing of wiring on frame".

Table A

For the complete index of the wirings, divided by tables, refer to chapter "Routing of wiring on frame".

TABLE A

Routing of wiring on frame

Fuse box key

Wire colour coding

B Blue
W White
V Violet
Bk Black
Y Yellow
R Red
Lb Light blue
Gr Grey
G Green
Bn Brown
O Orange
P Pink

Key to wiring diagram

1. Front stop switch
2. Clutch switch
3. Right-hand switch
4. Key switch
5. Left-hand switch
6. Fuse box
7. Mobile phone power socket
8. Bluetooth Module
9. ABS control unit
10. Starter motor
11. Fused solenoid
12. Battery
13. Alarm
14. Rectifier
15. Generator
16. Rear right turn indicator
17. Tail light
18. Rear left turn indicator
19. Number plate light
20. Fuel unit
21. Fuel pump ground
22. Main relay
23. Fuel pump relay
24. Vertical lambda sensor
25. Horizontal lambda sensor
26. Horizontal spark plug
27. Horizontal coil
28. Vertical spark plug
29. Vertical coil
30. Horizontal injector
31. Vertical injector
32. Potentiometer drive (TPS)
33. Secondary air actuator
34. MAP sensor
35. Oil temperature sensor
36. ECT sensor
37. Rear speed sensor
38. Side stand switch
39. Gear sensor
40. Oil pressure switch
41. Rear stop light
42. Data Acquisition / Diagnosis (DDA)
43. Timing/rpm sensor
44. Air temperature sensor
45. Control unit
46. Stepper motor
47. Front speed sensor
48. Transponder antenna
49. Instrument panel
50. LH heated handgrip
