NOTE

THE INSTRUMENT PANEL IS PROVIDED WITH A TWILIGHT SENSOR THAT, BASED ON THE AMBIENT LIGHTING, CAN PASS FROM DAYLIGHT MODE TO NIGHT TIME MODE, CHANGING THE COLOUR OF THE BACKGROUND WHEN "AUTO" (AUTOMATIC) MODE IS SET IN THE ADVANCED FUNCTIONS.

• Turning the ignition switch to 'KEY ON', the following illuminate on the instrument panel for about two seconds:
  • A dynamic graphic presentation.
  • All indicator lights on.

Using the MODE selector you can move between the information available in the "trip log".

The following information can be seen in the digital display

Key:

1. Engine revs (rpm x 1000).
2. Speed (speedometer) (displayed in km/h or in mph).
3. Fuel gauge.
4. Reserve fuel symbol.
5. Maintenance icon.
6. Gear engaged (only visible when the engine is running and the vehicle is moving)
7. Heated hand grips (if present); Engine overheating alarm
8. Number of km/mi left.
9. Presence of underpowered map indicator (35kW).
10. Clock (can be displayed both in 24H mode, as well as 12H mode without AM/PM).
11. Odometer.
12. Trip computer log.
13. Pop-ups.
14. Cruise control.
15. ABS system only on front wheel in "OFF ROAD" mode only.
16. Riding mode selected.
17. Ambient temperature (can be displayed in Cº or in Fº).
18. Ice warning (displayed from -15 Cº (5 Fº) to +3 Cº (37.4 Fº) ) / Battery warning (voltage between terminals too low).

Where the MGMP ECU is present (accessory):

19. GPS/Navigator (where active)
20. Data transmission with smartphone
21. Rider/passenger intercom.
22. Audio transmission with smartphone for calling, sending vocal commands and playing music

MAINTENANCE ICON

When a maintenance interval threshold is exceeded, an icon with a spanner is shown.

This indicator may be reset once scheduled maintenance has been completed by an authorised Moto Guzzi Dealer or service centre.

ICE WARNING

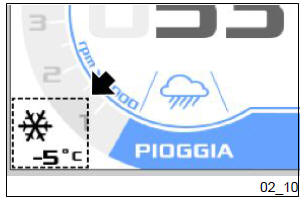

When the external temperature is lower than or equal to 3 Cº (37.4 Fº), up to a minimum of -15 Cº (5 Fº), the ice alarm symbol appears on the display alternately with the battery alarm (if activated).

BATTERY WARNING

If the battery symbol in the bottom left of the digital display comes on, this indicates that there is a problem in the battery recharge system alternately with the ice alarm (if activated).

FUEL LEVEL

The fuel level in the tank is indicated on the display by a number of bars.

When the fuel level drops below the third bar, the symbol on the digital display turns orange and the indicator light comes on.

NOTE

IF THE FUEL LEVEL INDICATOR LIGHT FLASHES WHEN THE IGNITION IS SWITCHED ON, THIS MEANS THAT THE SENSOR IS BROKEN.

IF THE FUEL LEVEL SENSOR DOES NOT WORK CORRECTLY WHEN THE ENGINE IS RUNNING, THE FUEL LEVEL BARS WILL NO LONGER BE SHOWN ON THE DIGITAL DISPLAY. PLEASE TAKE YOUR VEHICLE to an Authorised Moto Guzzi Dealer.

NOTE

THE FUEL LEVEL INDICATION MAY VARY ACCORDING TO THE INCLINATION OF THE MOTORCYCLE WHEN IT IS ON THE SIDE STAND AS OPPOSED TO WHEN IT IS GOING UP OR DOWN LONG SLOPES.

With the key set to "KEY OFF" the general alarm warning light flashes to indicate activation of the locking system. To reduce battery consumption the light stops flashing after about 48 hours.

• Alarms
• Mapping selection
• Advanced functions
