Moto Guzzi V85 TT - Service manual > Exhaust

Removing the tail pipe

REMOVAL

• Loosen the clamp (1)

• Block the nut (2) so that it cannot rotate and remove the screw (3)

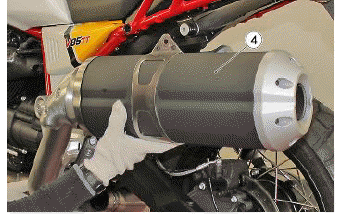

• Remove the rear silencer (4)

Removing the manifold - tail pipe

• Remove the terminal
• Loosen the clamp (1)

• Loosen the clamp (2)

• Block the nut (3) so that it cannot rotate and remove the screw (4)

• Block the nut (6) so that it cannot rotate and remove the screw (5)

• Remove the central manifold (7)

Removing the exhaust manifold

• Disconnect the lambda probe connectors (1) from both sides of the vehicle

• Unscrew and remove the nuts (2) from both sides of the vehicle

• Remove the exhaust manifold (3)
