Moto Guzzi V85 TT - Service manual > Handlebar

Removing

• Remove the rear view mirrors
• Remove the handguards
• Remove the front brake pump
• Remove the clutch pump

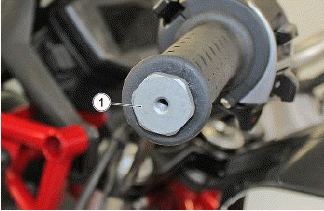

• Unscrew and remove the bushings (1) from both sides of the vehicle

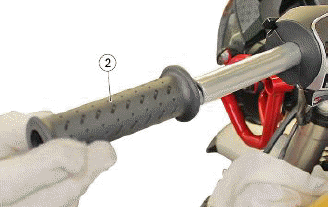

• Remove the left hand grip (2)

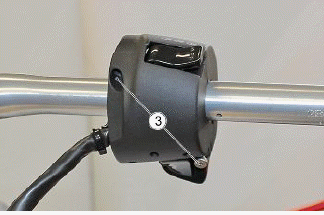

• Unscrew and remove the screws (3)

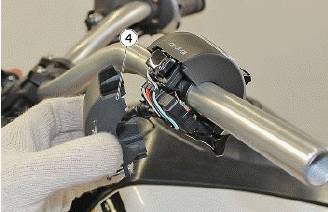

• Remove the left-hand lights switch cover (4)

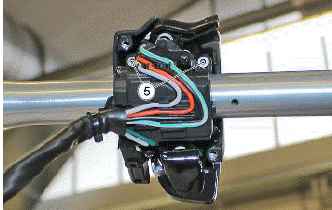

• Loosen the two screws (5)

• Unscrew and remove the screws (6)
• Loosen the screw (7)

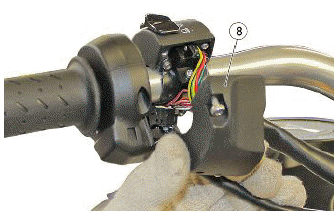

• Remove the right-hand lights switch cover (8)

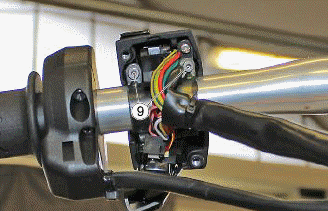

• Loosen the screws (9)

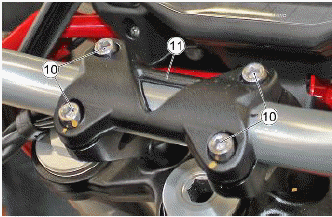

• Unscrew and remove the screws (10)
• Remove the U-bolt (11)

• Support the handlebar

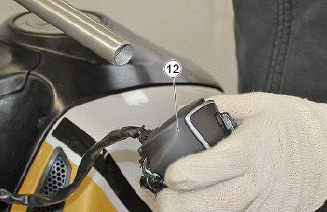

• Remove the left-hand lights switch from the handlebar (12)

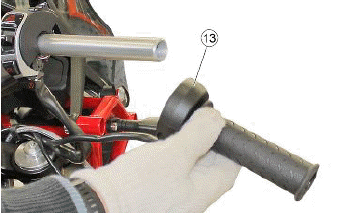

• Remove the throttle control from the handlebar (13)

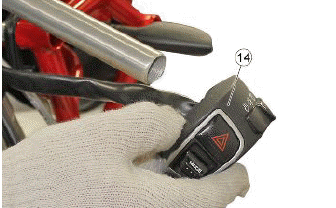

• Remove the right-hand lights switch from the handlebar (14)

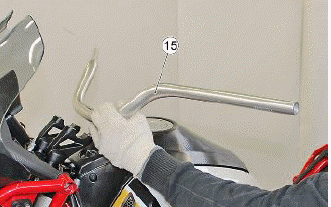

• Remove the handlebar (15)
