Ducati Scrambler - Owner's Manual > Instrument panel

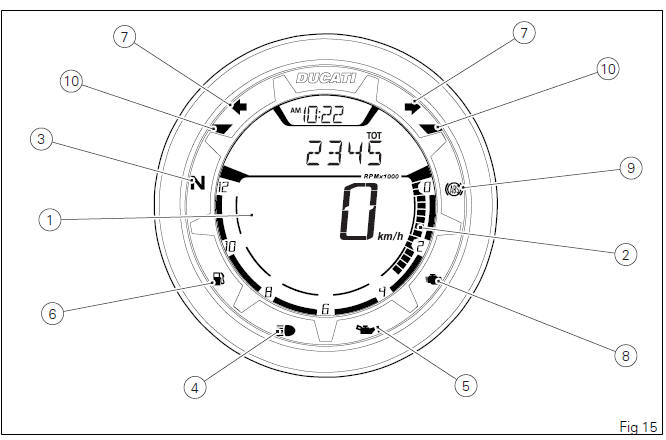

1. LCD.
2. REV COUNTER (rpm).

   It indicates engine rpm value.

3. NEUTRAL LIGHT N (GREEN).

   Comes on when in neutral position.

4. HIGH BEAM LIGHT (BLUE).

   Turns on to indicate that the high beam lights are on and when the flasher is activated.

5. ENGINE OIL PRESSURE LIGHT (RED).

   Comes on when engine oil pressure is too low. It must turn on at "KEY-ON", but must turn off a few seconds after the engine has started. May come on briefly when the engine is hot, but should go off as the engine revs up.

Important If the ENGINE OIL light stays ON, stop the engine or it may suffer severe damage.

6. FUEL WARNING LIGHT (AMBER YELLOW).

   Turns on when fuel is low and there are about 1.06 gallons (4 liters) of fuel left in the tank.

7. TURN INDICATOR LIGHTS (GREEN).

   A warning light turns on and blinks when the relevant turn indicator is active; when the warning lights blink at the same time, the HAZARD function is active.

8. "ENGINE/VEHICLE DIAGNOSIS - EOBD" LIGHT (AMBER YELLOW).

   Turns on in the case of "engine" and/or "vehicle" errors and in some cases will lock the engine.

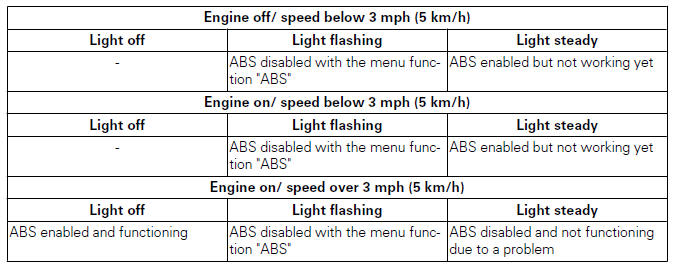

9. ABS LIGHTS (AMBER YELLOW).

   This turns on to indicate that ABS is disabled or not functioning.

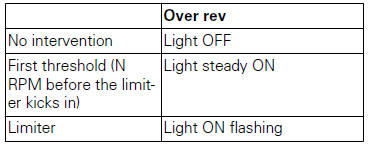

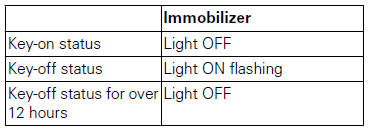

10. OVER REV / IMMOBILIZER / ANTI-THEFT SYSTEM (RED)

Note Each calibration of the Engine Control Unit may have a different setting for the thresholds that precede the rev limiter and the rev limiter itself.

Acronyms and abbreviations used in the Manual

ABS
  Anti-lock Braking System
CAN
  Controller Area Network
DDA
  DUCATI Data Acquisition
DSB
  Instrument panel
ECU
  Engine Control Unit

Technological Dictionary

Anti-lock Braking System (ABS) 9M

ABS 9M system is a two-channel latest-generation system that actuates combined braking with anti lift-up function for the rear wheel so as to guarantee not only a reduced stopping distance, but also a higher stability under braking.

Function push-buttons

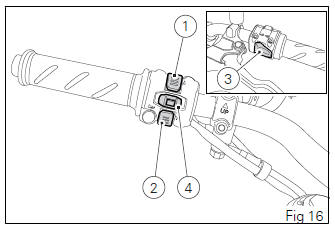

1) CONTROL SWITCH UP ""

Button used to display and set instrument panel parameters with the position "".

2) CONTROL SWITCH DOWN ""

Button used to display and set instrument panel parameters with the position "".

3) HIGH-BEAM FLASH BUTTON FLASH

This button is the high-beam flasher.

4) TURN INDICATORS CANCEL BUTTON

The turn indicators cancel button may also be used for the CONFIRM MENU function, for selecting the riding style. Press this button for 3 seconds to the left side to activate the "Hazard" lights.
