Ducati Scrambler 800 - Service manual > Refitting the rear footpegs

Fit spring (17) into rear footpeg (15).

Apply generic grease on the spring end and insert the ball (16).

Position plate (18) so that the two chamfers are facing the rear side.

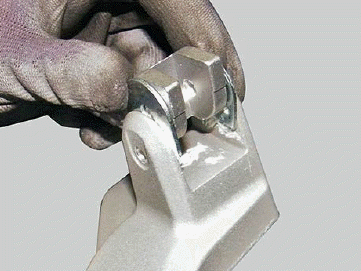

Press on the plates and insert the plate/footpeg assembly in the footpeg holder.

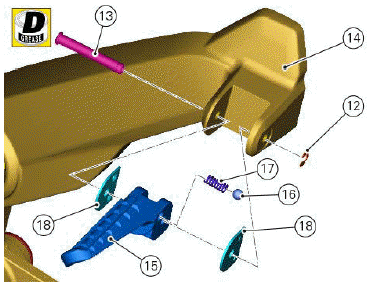

Smear the recommended grease on pin (13) and insert as shown.

Lock shaft using circlip (12).

Removing the rear footpegs

The following procedure applies to both rear footpegs.

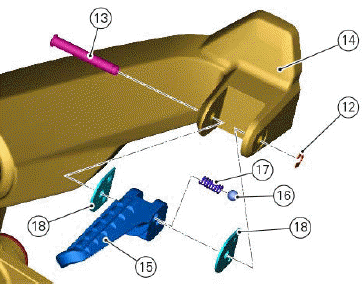

Remove the snap ring (12) releasing pins (13) and (15) and recovering ball (16), spring (17) and the two plates (18).

Slide off the footpeg (15).

Refitting the front footpeg support

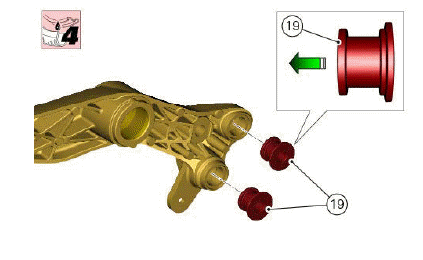

If previously removed, lubricate the two vibration damping pads (19) with specified product and position them as shown in the figure.

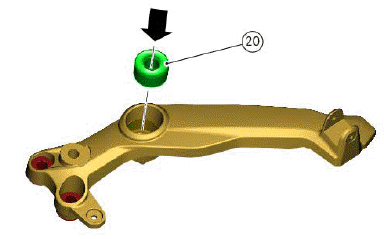

Use a suitable press to fit the silent block (20)

LH footpeg holder

Position the footpeg holder on the frame.

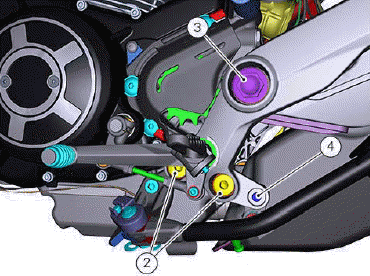

Start the screws (2) and (3) retaining footpeg holder to the frame.

Start screw (4) securing footpeg holder to exhaust.

Tighten the screws (2) to a torque of 36 Nm +- 10%.

Tighten the screw (3) to a torque of 55 Nm +- 5%.

RH footpeg holder

Position the footpeg holder on the frame.

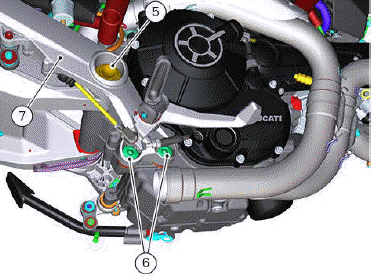

Start the screws (6) and (5) retaining footpeg holder to the frame.

Tighten the screws (6) to a torque of 36 Nm +- 10%.

Tighten the screw (5) to a torque of 55 Nm +- 5%.

Refit the silencer (Refitting the silencer).
