Ducati Scrambler 800 - Service manual > Technical data

Technical specifications

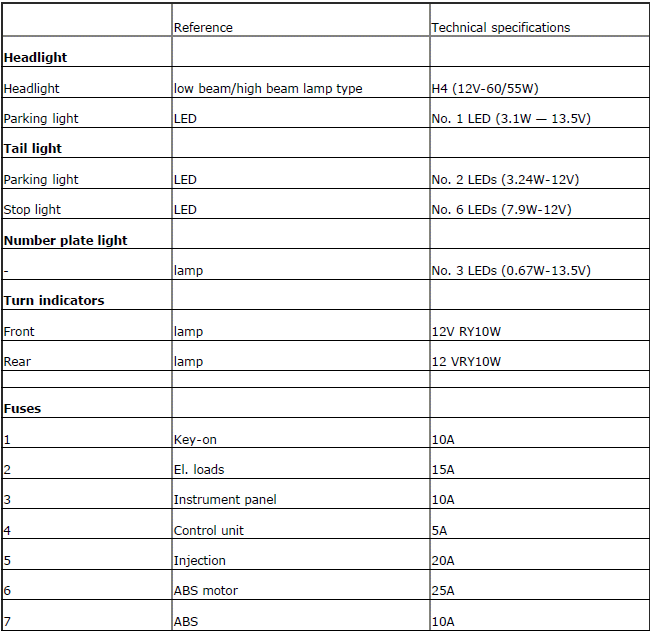

Lights/instrument panel

Fuel system

Important Do not use any additives in fuel or lubricants. Using them could result in severe damage of the engine and motorcycle components.

Warning The motorcycle is only compatible with fuel having a maximum content of ethanol of 10% (E10). Using fuel with ethanol content over 10% is forbidden. Using it could result in severe damage to the engine and motorcycle components. Using fuel with ethanol content over 10% will make the warranty null and void.

Ignition system

Injection system

Charging system/generator

Hydraulic brakes

Rear suspension

Rear wheel

Front suspension

Front wheel

Gearbox

Cylinder/piston

Crankshaft

Timing system/valves

Transmission

Colours

General

Overall dimensions

Dimensions

Fuel, lubricants and other fluids

Warning Failure to observe weight limits could result in poor handling and impair the performance of your motorcycle, and you may lose control of the motorcycle.

Important Do not use any additives in fuel or lubricants. Using them could result in severe damage of the engine and motorcycle components.

Warning The motorcycle is only compatible with fuel having a maximum content of ethanol of 10% (E10). Using fuel with ethanol content over 10% is forbidden. Using it could result in severe damage to the engine and motorcycle components. Using fuel with ethanol content over 10% will make the warranty null and void.

Engine oil

A good quality engine oil has special properties. Use only a highly detergent engine oil with certified SE, SF or SG or higher service ratings as marked on the container.

Viscosity

SAE 15W-50

The other viscosity grades specified in the table can be used where the average ambient temperatures are within the limits shown.

Tightening torque settings

Engine tightening torque values

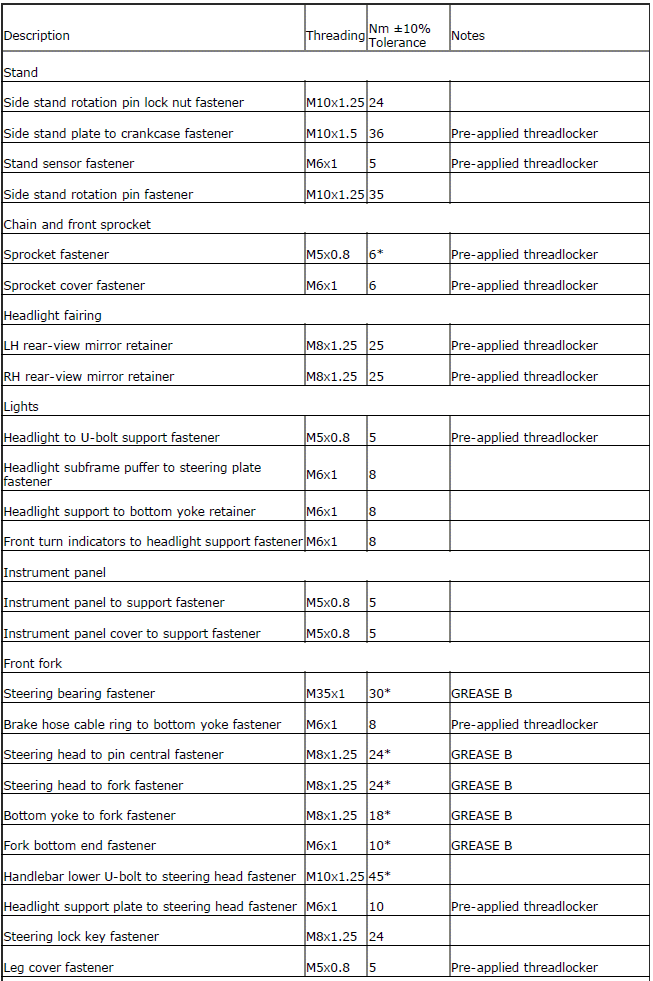

Frame tightening torque values

*dynamic safety-critical point; tightening torque tolerance must be Nm +-5%.

Service tools

Diagnosis special tools

Frame special tools

Engine special tools
